High-Speed Precision Pipe & Tube Manufacturing

Perfect Engineers Equipments designs and manufactures advanced Tube Mills for both sectional and round tubes with exceptional dimensional accuracy and efficiency.

Apart from the complete processing lines we also manufacture material handling equipment’s & other terminals equipment’s. Some of them are listed below:

4 Hi Corrective Leveller : We manufacture state of the art 4 hi corrective levellers from 500 mm to 2000 mm. These levellers flatten the material to the maximum, backup support is provided at various places avoid deflection in rolls.

Pyramid Recoiler: One of the best design in recoilers is the 6 segment pyramid recoiler used to recoil the thinner gauge material. The 6 segments make an unbroken surface to avoid surface defects in material.

Hydraulics : As any other processing lines, a very vital and intergral part is the hydraulic system. We use the best products to make these systems work. Products of world class manufacturers like YUKEN, DANFOSS and PARKER are used.

TROLLEYS & HOOKS : Coil Car Trolleys, Tilting Trolleys, Horizontal Coil Grabs and C Hooks with capacity from 10 - 30 tons are also some of the products we manufacture.

EOT Cranes : We also manufacture cranes as per the customer’s requirements with capacity from 10 - 50 tons.

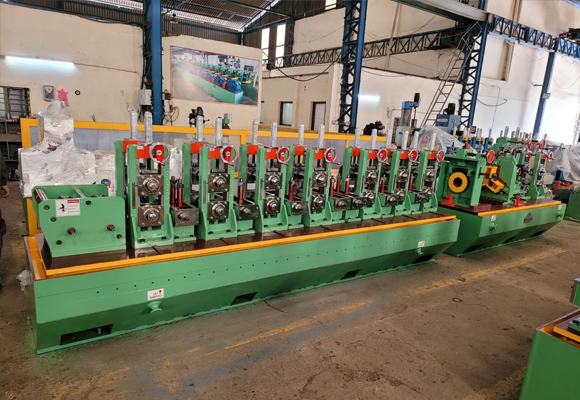

Automatic Tube Mill

Key Performance Features

  • Capable of achieving high D/T ratios
  • High-speed production for increased output
  • CNC Servo Cut System for accurate, automated tube cutting
  • Energy-efficient AC digital drives for superior performance
  • Cold saw cut-off carriage with low burr cutting
  • Horizontal and vertical accumulators for seamless feeding
  • Stretch reducing mills for small-diameter production

Production Sizing

Pipe Mills (NB)

  • 15–50 mm NB
  • 15–75 mm NB
  • 25–100 mm NB
  • 50–150 mm NB
  • 65–200 mm NB
  • 100–300 mm NB+

Precision Tube (OD)

  • 9–32 mm OD
  • 12–38 mm OD
  • 15–50 mm OD
  • 32–100 mm OD
  • 40–150 mm OD

Perfect Engineers Equipments delivers turnkey Tube Mill solutions that combine speed with precision for long-term industrial reliability.
